Mainly suitable for the skin processing of various sanitary main parts. Instead of manual grinding and polishing, similar to milling, the surface of the part is milled to obtain a uniform part body.

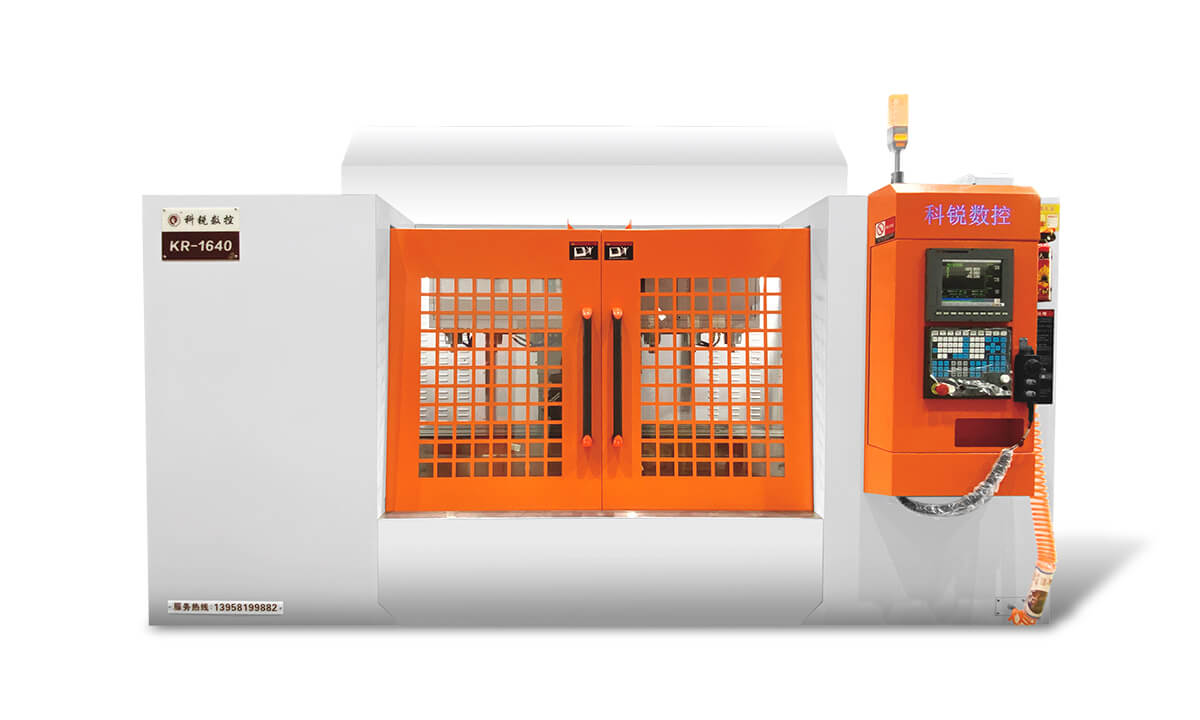

Multi-head carving milling machine
KR-1640
1.Overall layout of the machine tool
Different from the existing engraving and milling machines on the market, KR-1640 adopts a vertical machining center bed structure, integrally cast, with stronger overall rigidity and better stability.
2.Transmission system
The three-axis adopts roller linear guide, which has low dynamic and static friction, high sensitivity, low high-speed vibration, low-speed no creep, and high positioning accuracy.
3. Spindle group
The main shaft system adopts high-speed electric main shaft, and the bearing adopts NSK P-class special main shaft bearing. The whole set of main shaft has long service life and high precision.

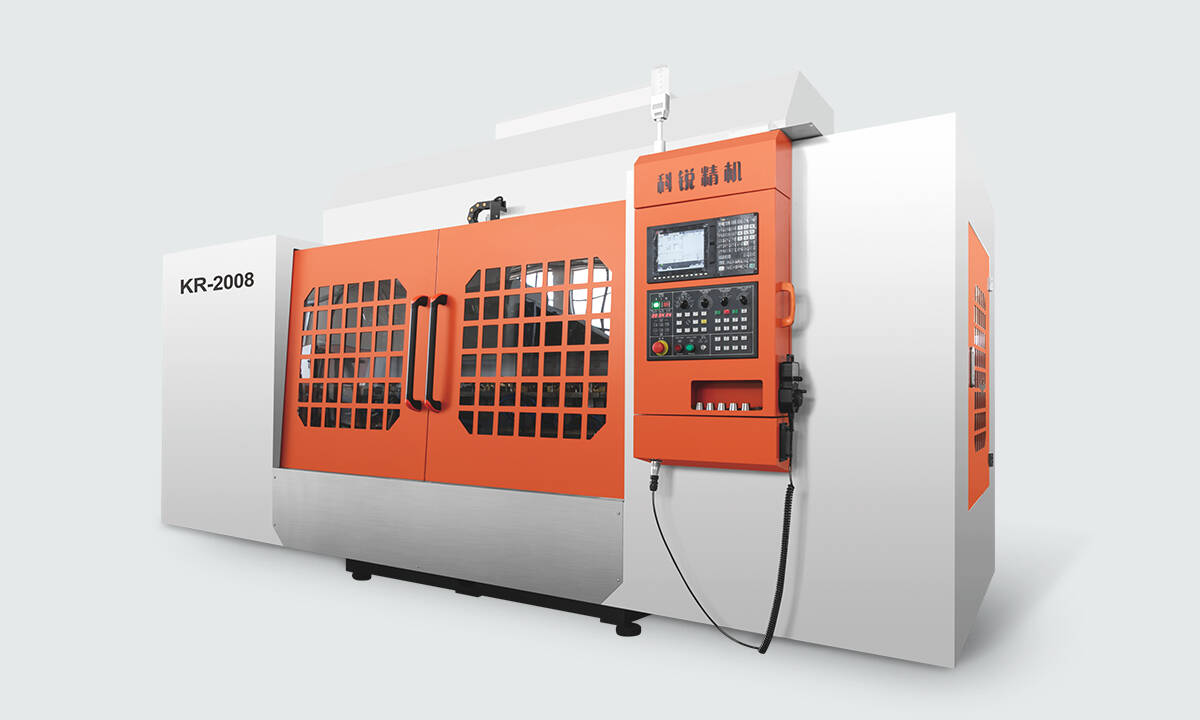

1.Overall layout of the machine tool
Different from the existing engraving and milling machines on the market, KR-2008 adopts a vertical machining center bed structure, integral casting, stronger overall rigidity and better stability.
2.Transmission system
The three-axis adopts roller linear guide, which has low dynamic and static friction, high sensitivity, low high-speed vibration, low-speed no creep, and high positioning accuracy. All adopt imported double nuts to pre-tighten the ball screw, double nuts automatically eliminate backlash, and the transmission accuracy is stable.
3.Spindle group
The main shaft system adopts high-speed electric main shaft, and the bearing adopts NSK P-class special main shaft bearing. The whole set of main shaft has long service life and high precision.

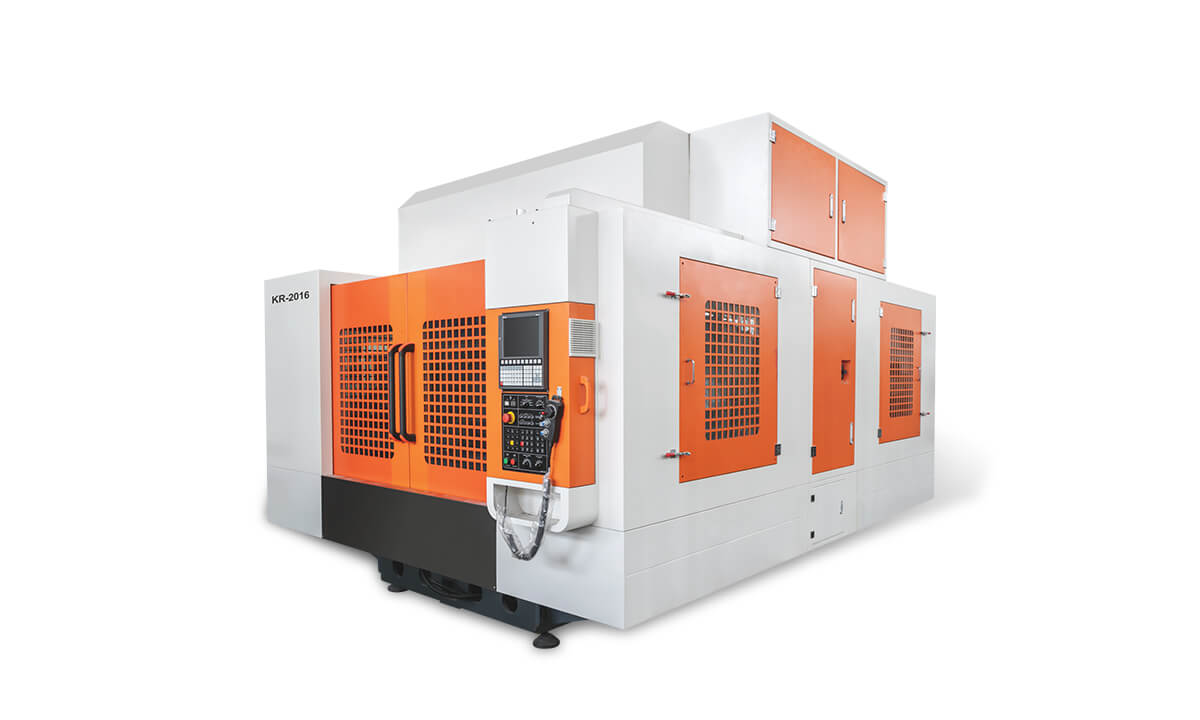

1.Overall layout of the machine tool
The screw type chip conveyor is added to the bed body to make the iron chips in the equipment easier to discharge, effectively avoiding the problem of manual cleaning.
2.Transmission system
The three-axis adopts roller linear guide, which has low dynamic and static friction, high sensitivity, low high-speed vibration, low-speed no creep, and high positioning accuracy. All adopt imported double nuts to pre-tighten the ball screw, double nuts automatically eliminate backlash, and the transmission accuracy is stable.
3.Spindle group
The main shaft system adopts high-speed electric main shaft, and the bearing adopts NSK P-class special main shaft bearing. The whole set of main shaft has long service life and high precision.
